HIKARI MULTI-HEAD PRODUCT INTRODUCTION
1.SPINDLE INTERVAL ADJUSTABLE TYPE

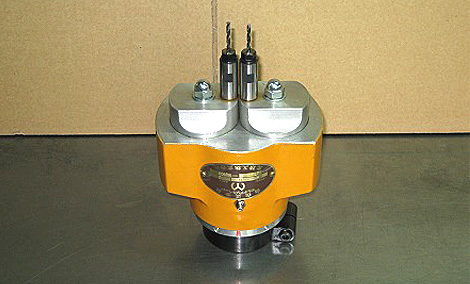

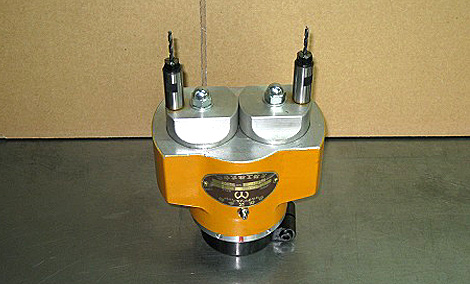

(1) ALL GEAR TYPE
Contents:
This is the type that can change an interval between 2 spindles freely.
This enabled the compactification of the external form for gear drive.
*spindle interval (min)
*spindle interval(max)| (MODEL) | HMK-110N 2spindles(collet type) |
|---|---|
| (SPEC) | Drill process (P=18mm(min)~110mm(max)) |

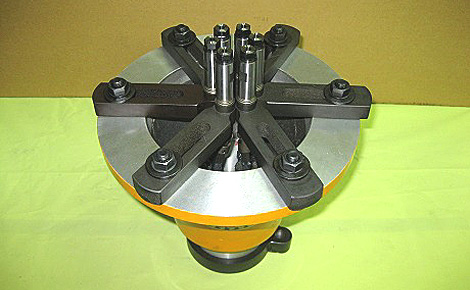

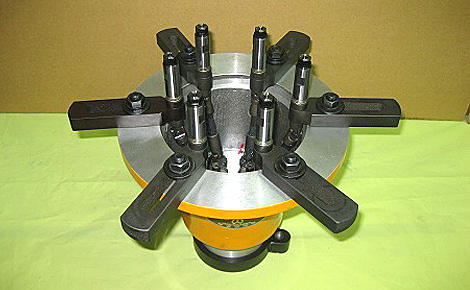

(2) UNIVERSAL JOINT TYPE
Contents:
This used a universal joint by a drive method.
Therefore this can change it of P.C.D freely.
*spindle P.C.D(min)
*spindle P.C.D(max)| (MODEL) | HMK-120 6spindles(collet type) |
|---|---|
| (SPEC) | Drill process (P.C.Df52mm(min)~120mm(max)) |

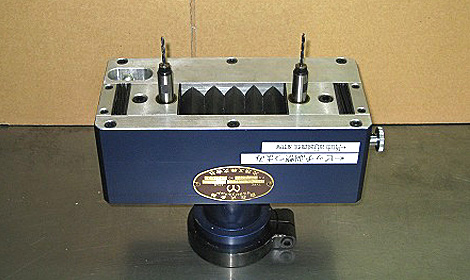

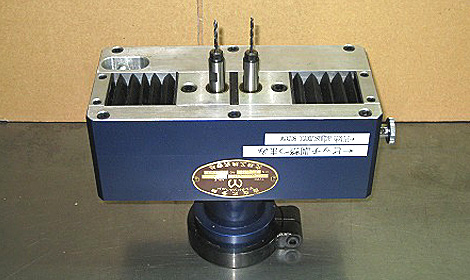

(3) BELT DRIVEN TYPE(Straight line movement type)
Contents:
This spindle interval can change on a straight line freely.
This does not have the noise and the vibration for a belt drive type.
This is suitable for light processing such as woodwork or the aluminum.
*spindle interval(min)
*spindle interval(max)| (MODEL) | HMK-SV250οΎ—115 2spindles(collet type) |
|---|---|
| (SPEC) | Drill process (P=30mm(min)~120mm(max)) |
Guidance
The other products carry it by the example introduction of the Japanese site,
and please look at it.
